Alert Webhook

Overview

To forward AWS Personal Health Dashboard (PHD) events to CloudOps, set up an EventBridge Rule to detect Health events and deliver them to the CloudOps webhook endpoint directly via an API Destination.

You will need:

CloudOps webhook URL — the endpoint that CloudOps issues when you register an AWS PHD webhook source. Obtain it first by following Integrate AWS PHD to CloudOps.
AWS console permission to create EventBridge Rules, Connections, and API Destinations.

The setup follows this order:

Create an EventBridge Connection
Create an EventBridge API Destination
Create an EventBridge Rule (Health events → API Destination)
Test the integration

ℹ️

AWS Health events cannot be triggered manually — they are generated automatically by AWS infrastructure when service issues, scheduled maintenance, or account notifications occur. Once setup is complete, events will flow to CloudOps as they arise.

1. Create an EventBridge Connection

Define the authentication information that the API Destination will use when calling the external endpoint.

Navigate to EventBridge

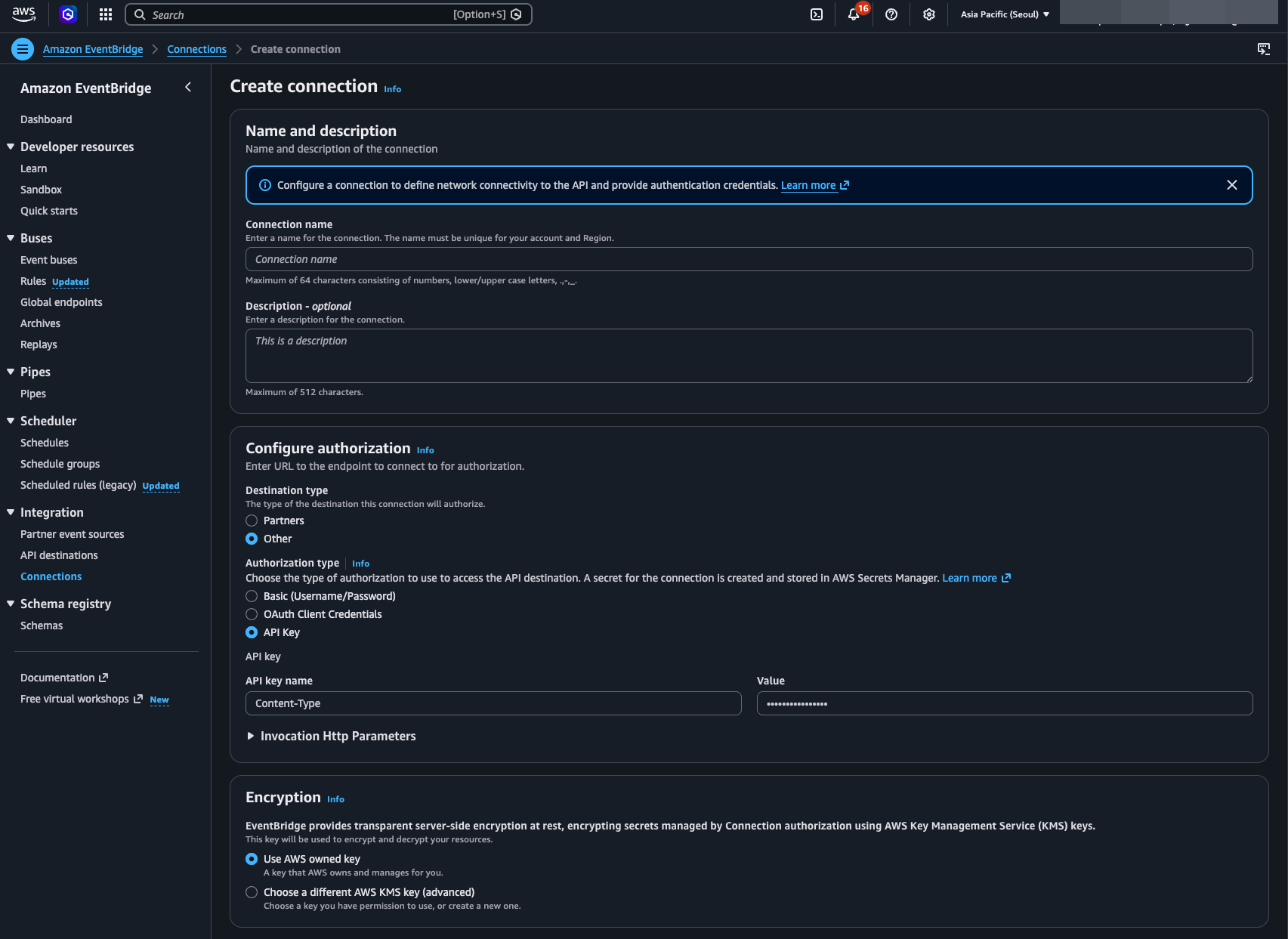

Create a Connection

Click [Integration > Connections] in the left menu, then click [Create connection].

Connection name: Enter a recognizable name (e.g., cloudops-webhook-connection)
Destination type: Other
Authorization type: API Key
API key name: Content-Type
Value: application/json

Click [Create].

ℹ️

The CloudOps webhook URL includes a token in the URL itself, so no separate authorization header is needed. Setting the API Key to Content-Type: application/json ensures the payload is delivered in JSON format.

2. Create an EventBridge API Destination

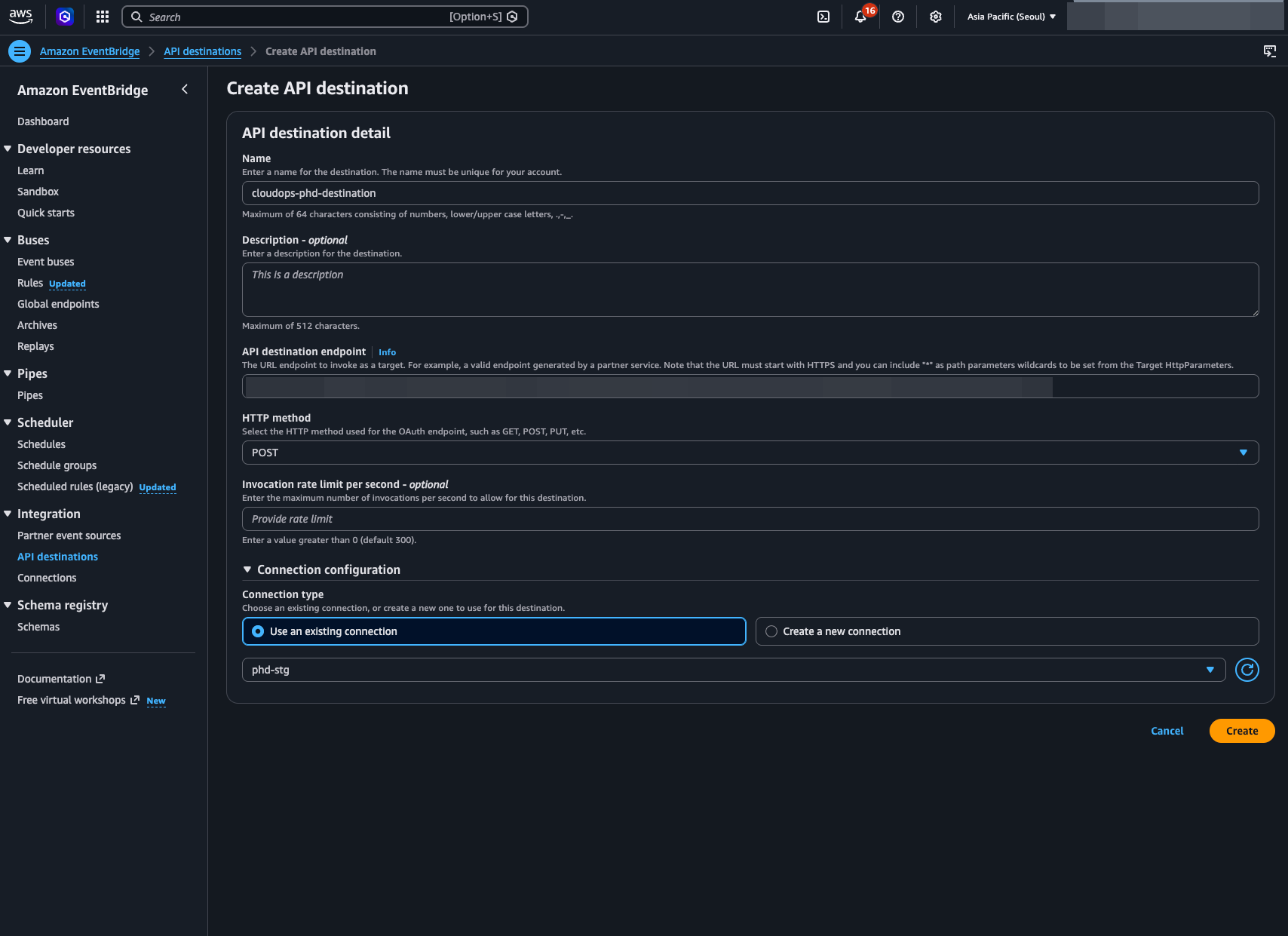

Create an API Destination

Click [Integration > API destinations] in the left menu, then click [Create API destination].

Name: Enter a recognizable name (e.g., cloudops-phd-destination)
API destination endpoint: Paste the Webhook URL issued by CloudOps.
HTTP method: POST
Connection type: Use an existing connection
Connection: Select the Connection created above (e.g., cloudops-webhook-connection)

Click [Create].

3. Create an EventBridge Rule

Set up an EventBridge Rule so that AWS Health events are automatically forwarded to the API Destination.

Create a Rule

Click [Buses > Rules] in the left menu, then click [Create rule].

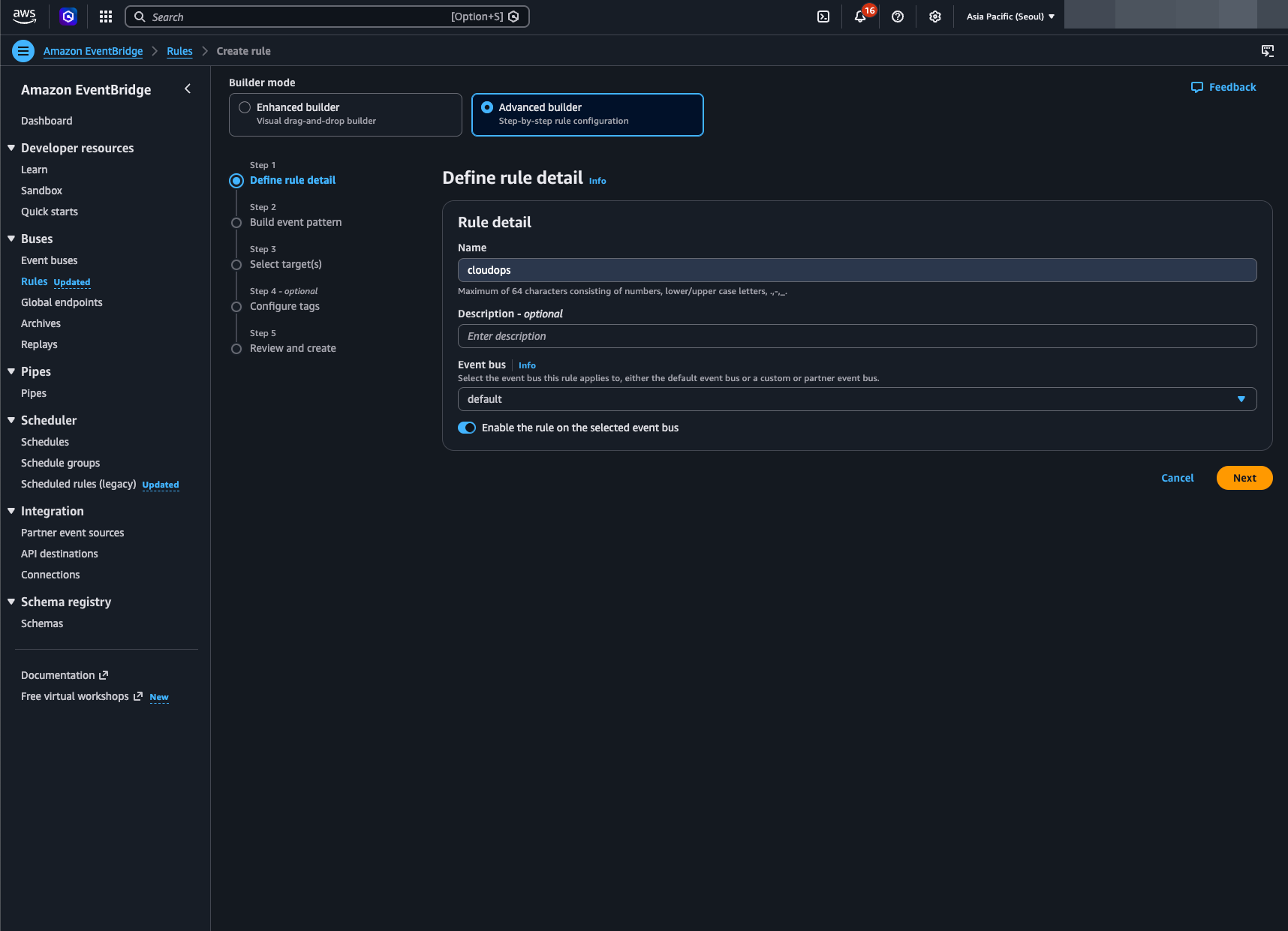

Enter Rule Details

Name: Enter a recognizable name (e.g., cloudops-health-rule)
Event bus: Select default
Rule type: Select Rule with an event pattern

Click [Next].

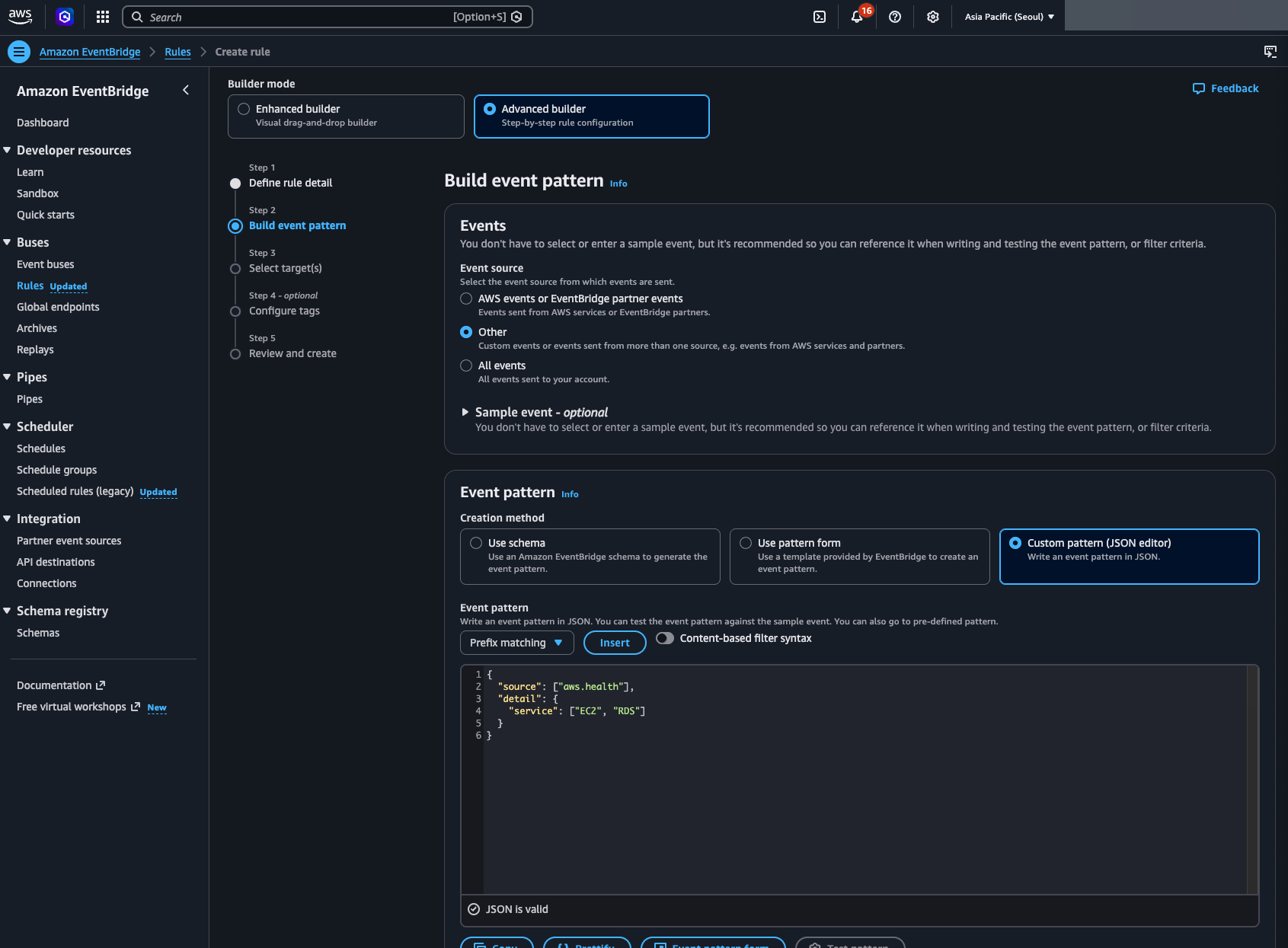

Configure the Event Pattern

Under Event source, select AWS events or EventBridge partner events.

In the Event pattern section, select Custom pattern (JSON editor) and enter:

{
  "source": ["aws.health"]
}

ℹ️

To receive Health events for specific services only, add a detail.service filter:

{
  "source": ["aws.health"],
  "detail": {
    "service": ["EC2", "RDS"]
  }
}

Click [Next].

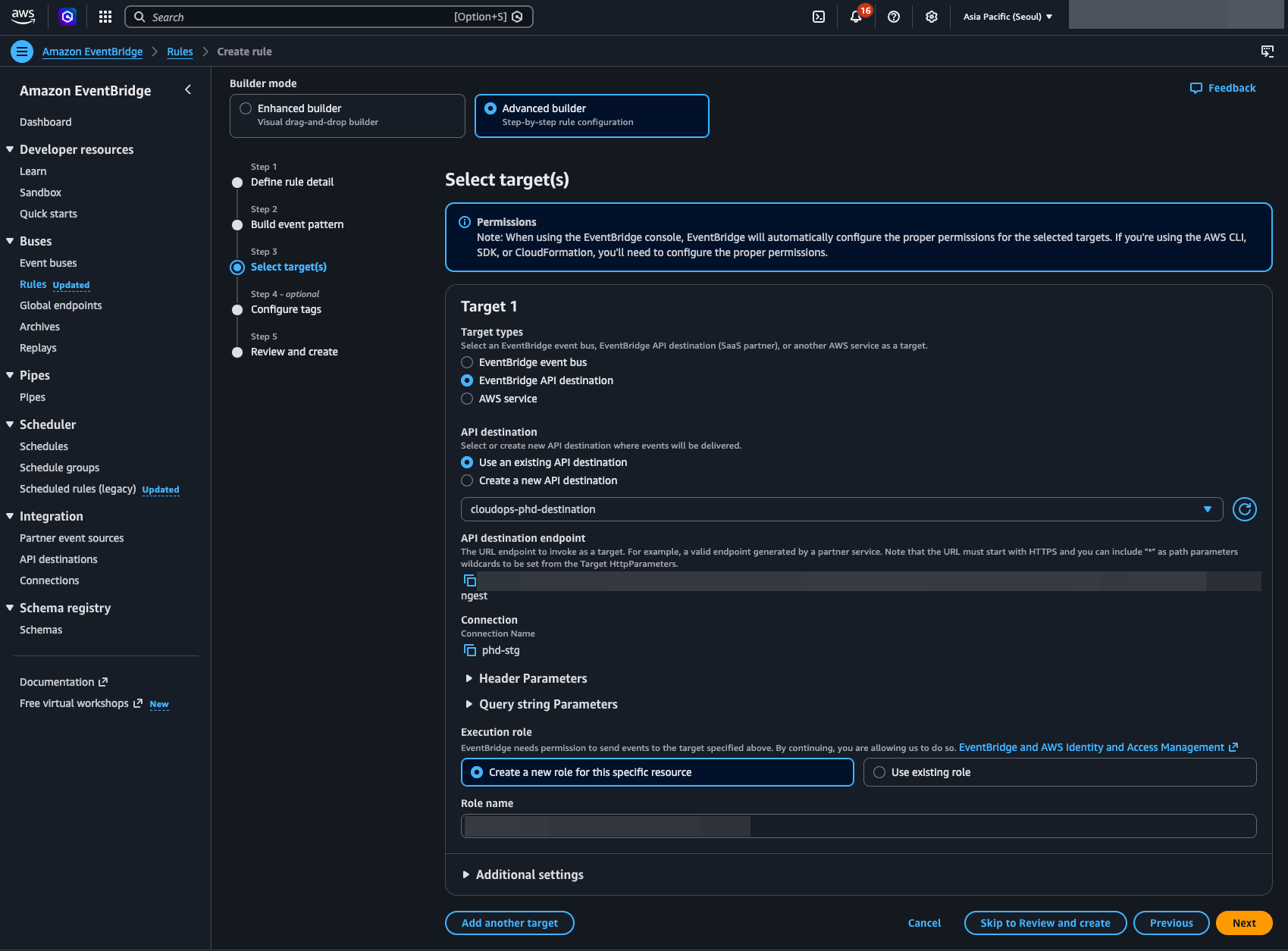

Configure the Target

Target type: Select EventBridge API destination
API destination: Select the API Destination created above (e.g., cloudops-phd-destination)

Click [Next] → [Next] → [Create rule] to complete.

4. Test the Integration

Testing Method

AWS Health events cannot be triggered manually. To verify that the setup is correct:

Check EventBridge Rule status: Confirm that the Rule’s Status is Enabled in the EventBridge console.
Check API Destination status: Confirm that the Status is Active in the API Destinations list.
Check Connection status: Confirm that the Status is Authorized in the Connections list.

If all statuses are normal, actual AWS Health events will be automatically forwarded to CloudOps when they occur.

Verify on CloudOps

When an actual Health event occurs, check that the Requests (24h) count increases on the registered webhook source in the CloudOps console.

Health Event Types

CloudOps classifies AWS Health events as follows:

AWS eventTypeCategory	CloudOps Severity	CloudOps Event Type
`issue`	ERROR	ALERT
`scheduledChange`	WARNING	ALERT
`accountNotification`	INFO	ALERT

When the statusCode changes to closed, CloudOps treats the event as RECOVERY.
